Advanced Static Linting for FPGA Performance Optimization

Accelerate FPGA Design with Advanced Static Linting

In modern high-speed FPGA design, raw performance isn’t enough. Engineers face increasing challenges in achieving higher clock frequencies, lower power consumption, and smaller silicon footprints — all while maintaining strict design reliability. The key to mastering these challenges lies in early-stage static linting. Advanced linting tools such as ALINT-PRO allow design teams to analyze HDL code for performance, timing, and synthesis readiness before simulation or implementation even begins.

Static linting is an automated HDL code analysis technique that detects hidden design issues without simulation. It validates Verilog, VHDL, or mixed-language designs against hundreds of best-practice rules, ensuring RTL code meets both functional and performance objectives. With advanced linting, engineers can detect coding inefficiencies early in the design cycle, verify clock and reset correctness, identify long combinational paths before synthesis, and improve timing closure and implementation predictability. Static linting isn’t just for code quality — it’s a performance enabler.

Waiting until synthesis to optimize performance is costly. By integrating linting at the RTL development stage, engineers can detect inefficiencies, logic hazards, and architecture flaws that otherwise surface much later during place-and-route or static timing analysis. Early linting accelerates timing closure, reduces implementation runtime, improves power efficiency and area utilization, and increases design confidence before simulation.

FPGA-Specific Rule Sets: Precision Optimization for Programmable Logic

Traditional linting focuses on syntax and coding style. FPGA-specific rule sets, however, are engineered to target architecture-aware performance bottlenecks, resource inefficiencies, and timing sensitivities unique to programmable logic. Below are the most impactful categories of FPGA-specific rules implemented in modern linting tools like ALINT-PRO.

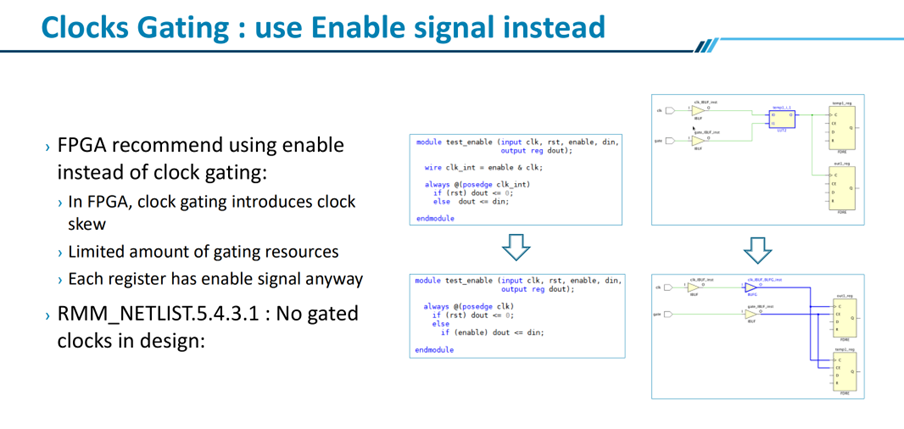

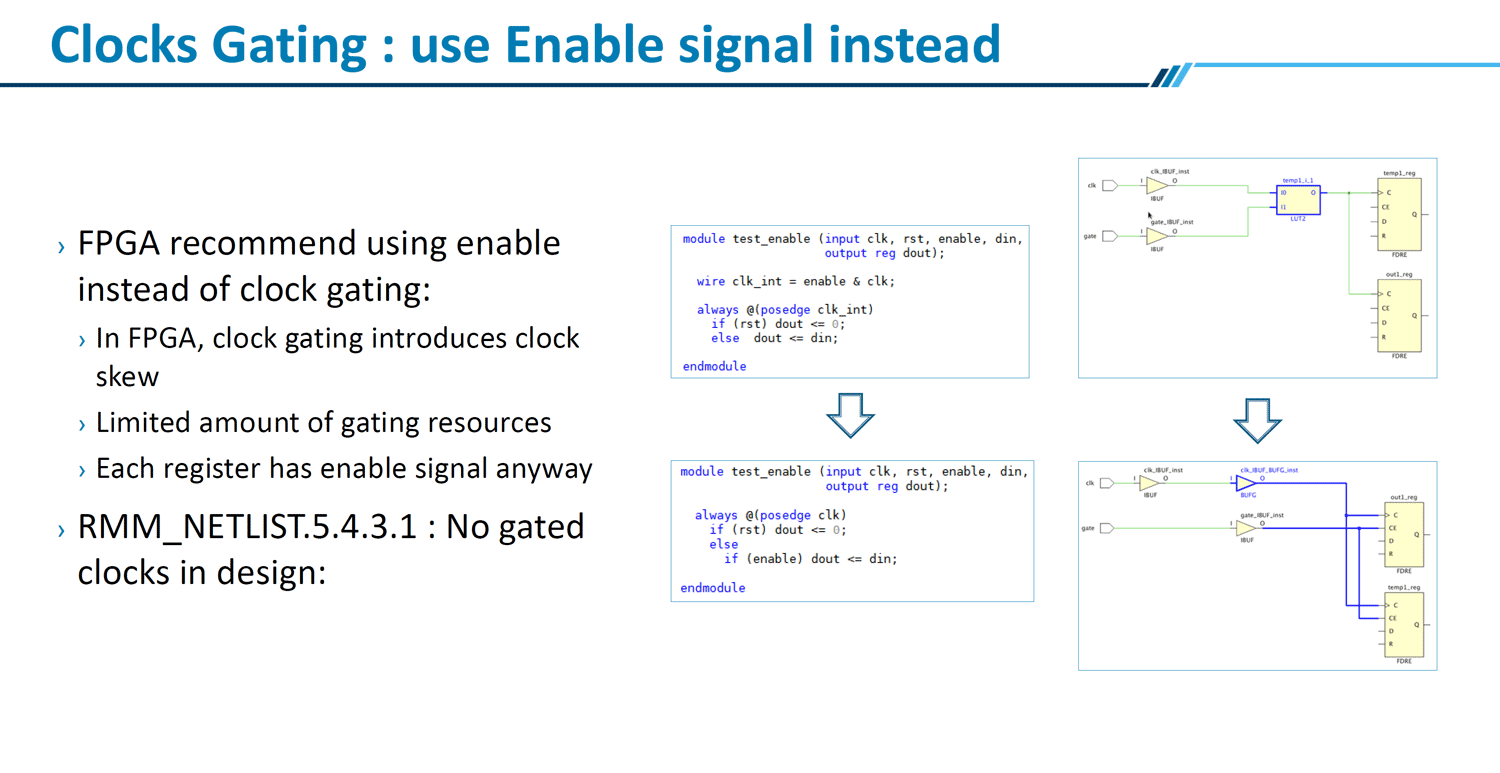

1. Clock Enable Optimization vs. Clock Gating
Conventional clock gating can introduce skew and timing violations in FPGAs. FPGA-specific linting rules now enforce clock enable logic instead, fully aligned with recommendations from major FPGA vendors. This results in lower power, cleaner clock trees, and safer timing across domains.

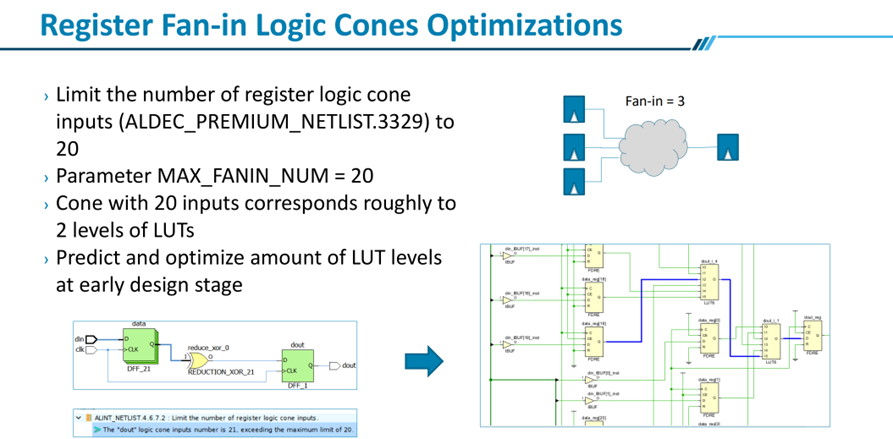

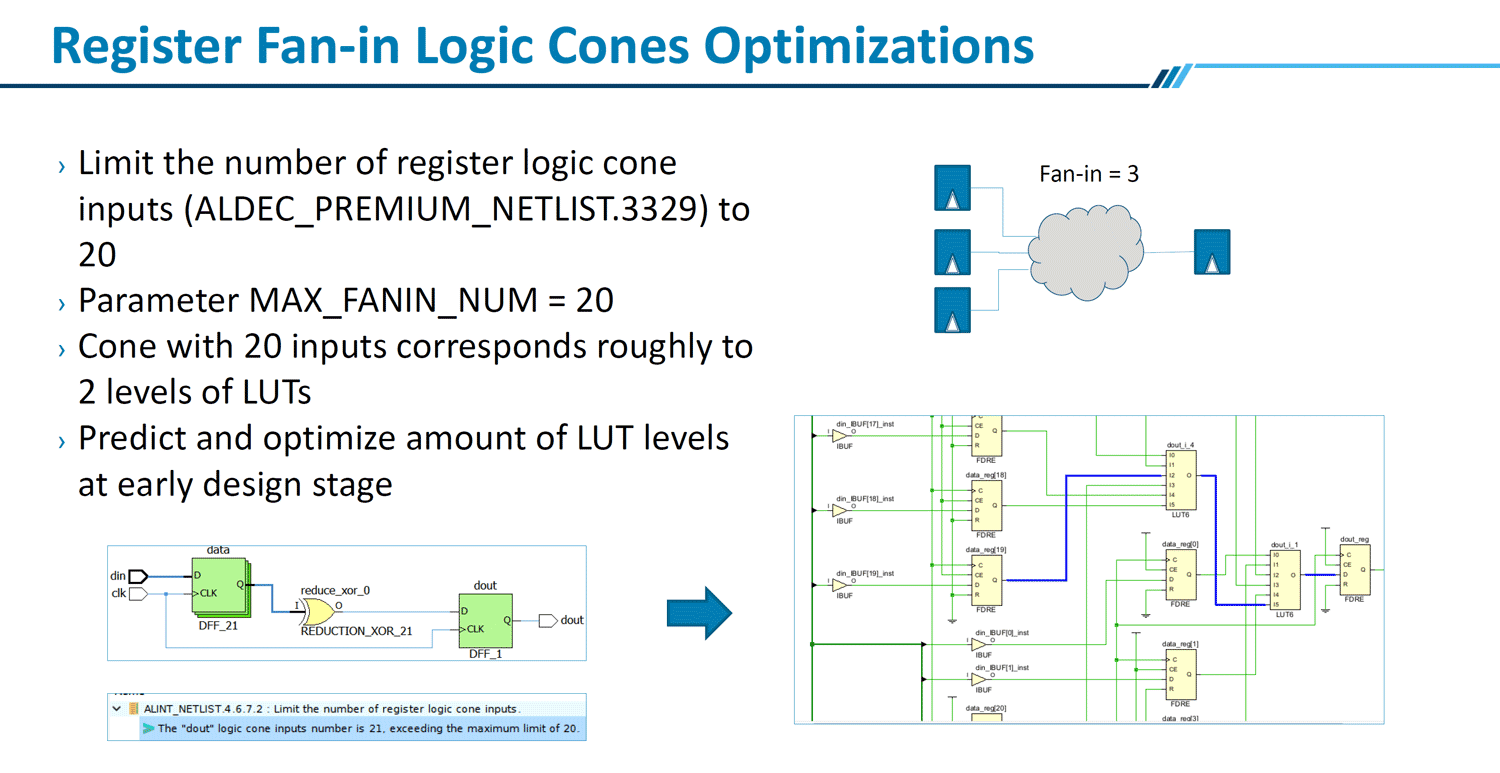

2. Register Fan-In and Control Set Efficiency
Each slice in an FPGA has limited input and control signal capacity. Exceeding register fan-in thresholds leads to longer logic chains and routing congestion. Advanced linting tools automatically flag excessive fan-in and analyze control set utilization, identifying designs that overuse unique resets, enables, or clocks. This ensures efficient resource packing and improved timing margins.

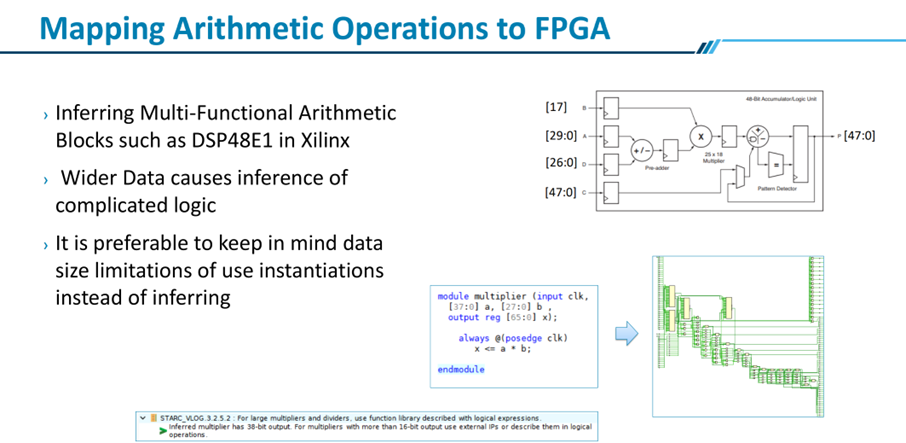

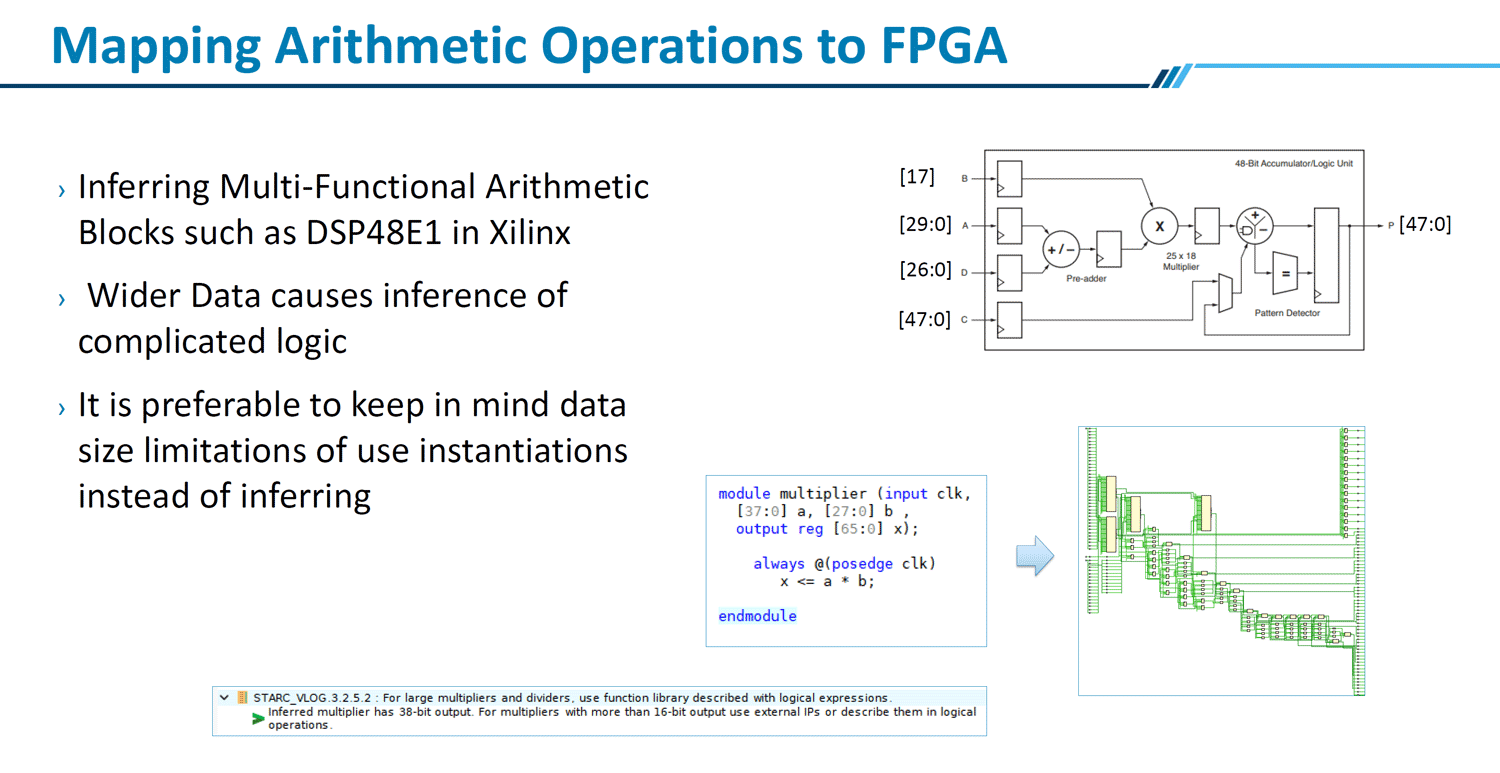

3. Arithmetic and Resource Mapping Optimization
Modern FPGAs include dedicated DSP slices, multipliers, and logic blocks. FPGA-specific linting checks ensure arithmetic operations are coded to infer hardware DSP blocks efficiently, using correct bit widths, pipeline depths, and operand structures. This leads to optimized mapping to DSP resources, reduced LUT count, and faster timing closure.

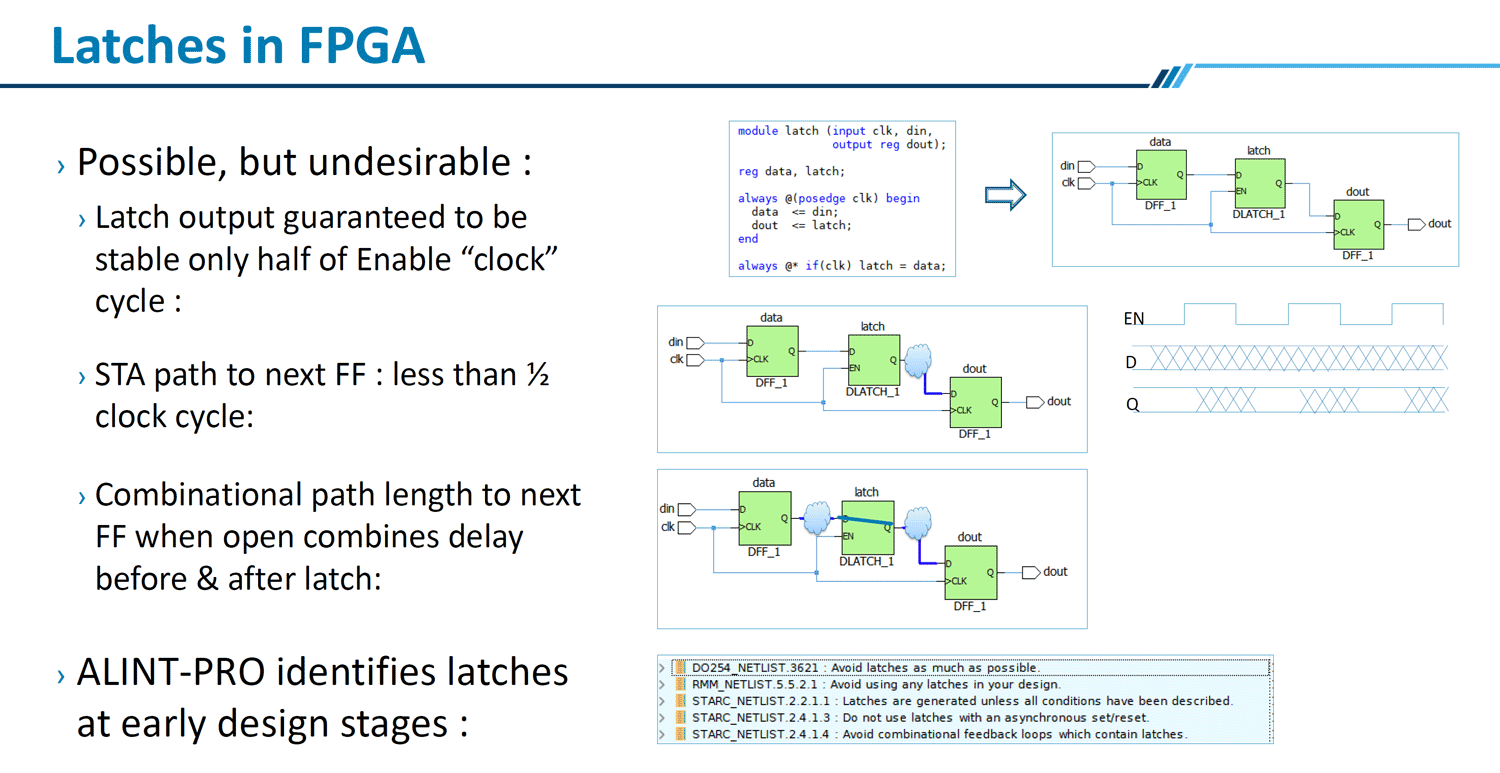

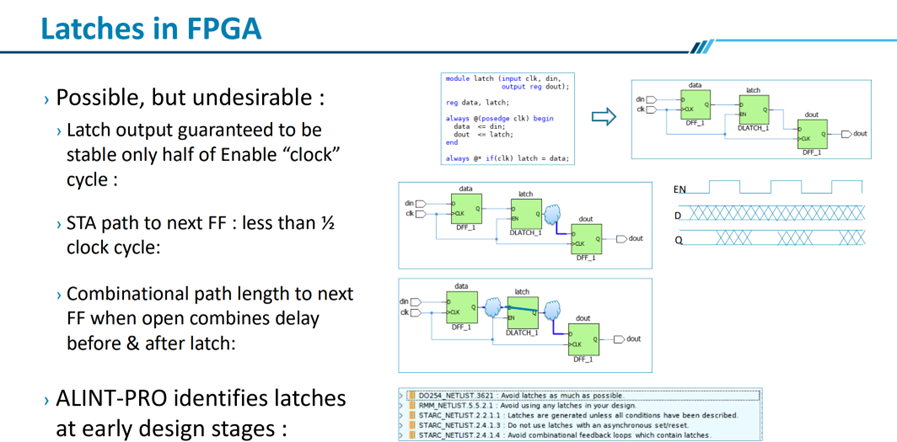

4. Latch Elimination for Stable Timing
Unintended latch inference remains one of the most common HDL pitfalls. FPGA-specific linting detects latches created by incomplete conditions in if or case statements, ensuring all paths are explicitly registered. This provides deterministic timing analysis, glitch-free signals, and predictable synthesis results.

5. Technology Optimization Awareness

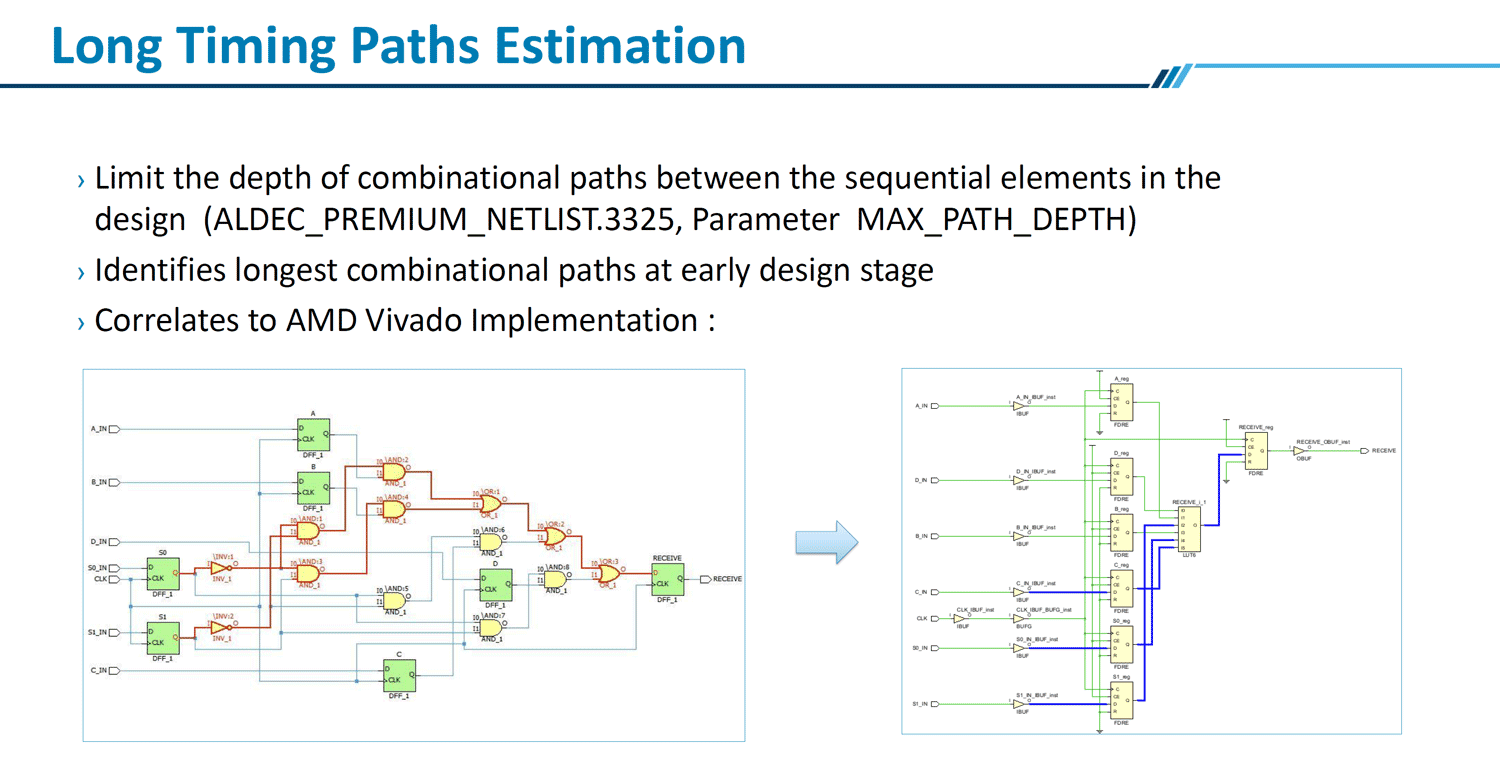

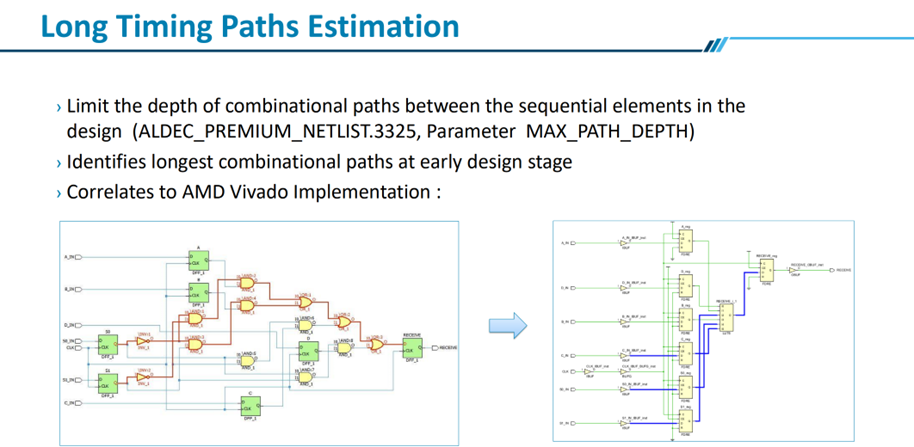

Even before synthesis, linting can estimate logic depth and combinational path length. By analyzing these soft timing indicators, designers can predict potential bottlenecks in high-frequency designs and adjust logic partitioning or pipelining strategies accordingly. This gives early visibility into timing-critical paths without full implementation.

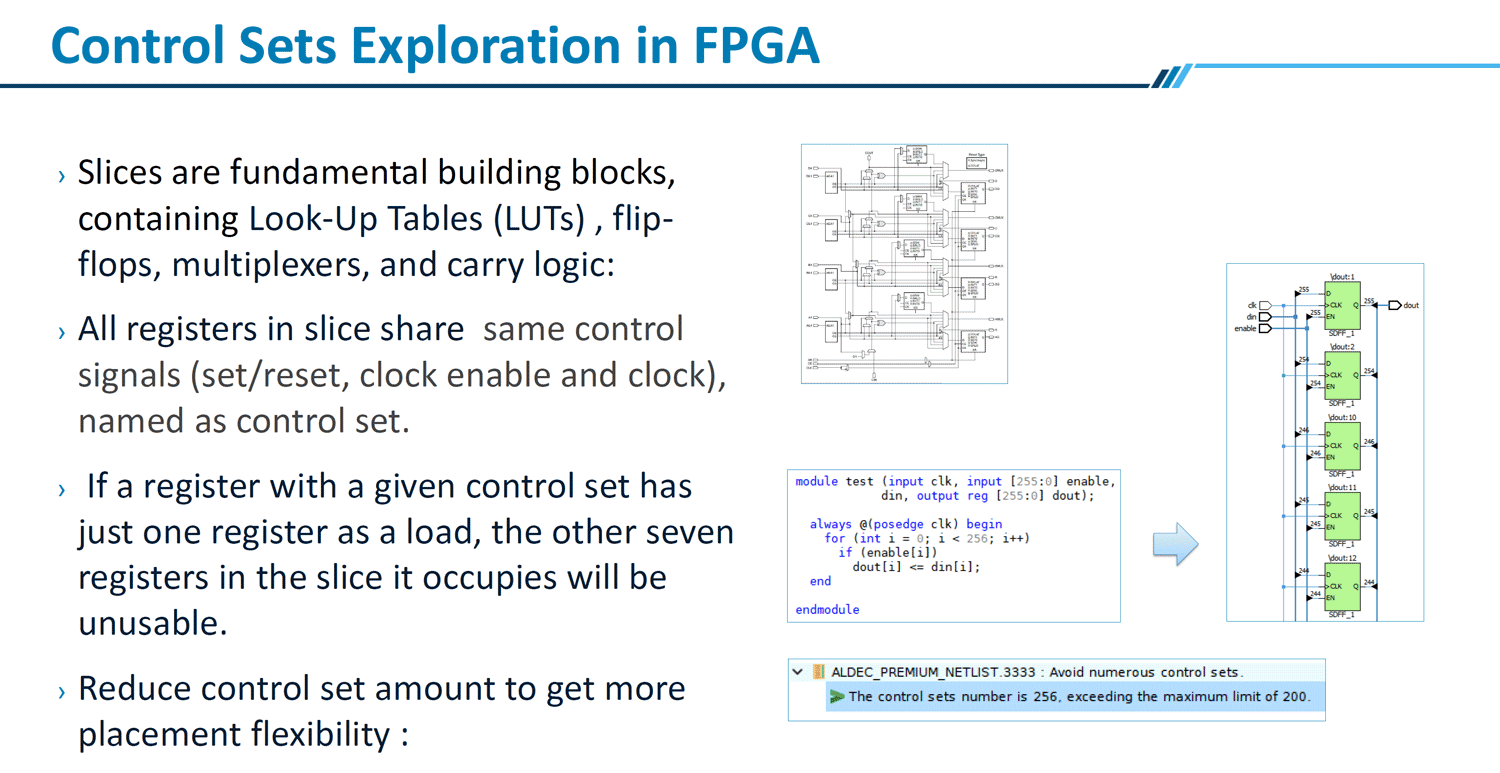

6. Control Set and Logic Utilization Balance
FPGA-specific rules also analyze how registers share control signals. If too many unique control sets exist, slice utilization drops dramatically, wasting valuable FPGA fabric. Linting highlights these cases early, allowing designers to consolidate control logic for more compact, performance-optimized resource usage.

The latest generation of static linting tools extends beyond syntax validation. By combining FPGA-awareness, constraint propagation, and architecture-based checks, engineers can achieve timing-aware static analysis, technology-independent synthesis evaluation, structural optimization before placement, and configurable rule tagging for goal-specific runs. These capabilities make linting not just a verification tool but a design optimization platform.

Real-world RTL designs show how static linting converts nested if-else chains into efficient case statements, detects long combinational feedback loops, reveals resource-sharing opportunities, and identifies unregistered I/O and CDC violations early in RTL. These examples demonstrate how FPGA-specific rule sets in ALINT-PRO translate into faster, safer, and more efficient FPGA implementations.
Early linting is now a best practice for achieving timing, power, and area goals in FPGA projects. By adopting FPGA-specific rule sets, design teams can achieve faster timing closure cycles, fewer synthesis iterations, and noticeable reductions in power and area utilization. Linting has evolved from a coding hygiene step into a critical phase of design optimization.
